UNITECH
De-Humidifier-Systems


For production-processes where sterility must
be guaranteed, where humidity and heat are undesirable, UNITECH De-Humidifier/Dryer Systems offer you an ideal solution.

Dry air without the use of mechanical chillers.

The air will be dehumidified and cooled in the spray-chamber of the CONDITIONER in contact with the absorber solution (liquid Lithium Chlorid solution). Leaving air humidity condition can be as low as 20% relativ, at temperatures freely selectable by choosing the appropriate water coolant temperature.

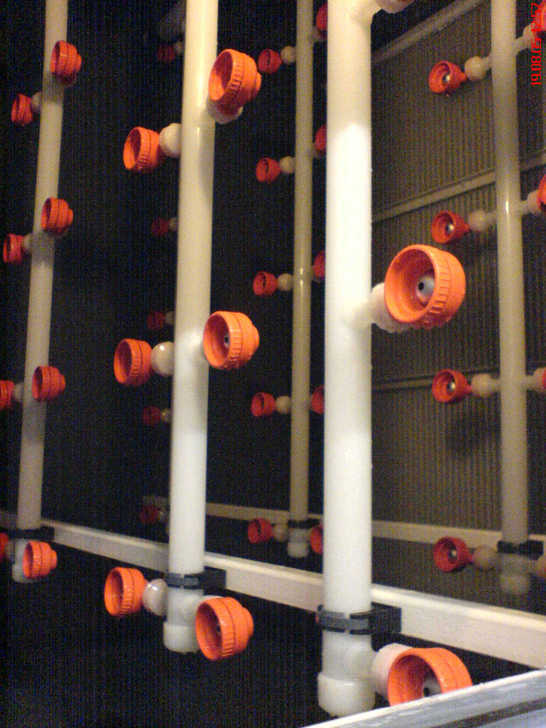

The air unit construction is using SPRAY NOZZLES  (no Fillpack), therefore you have free access to all parts for cleaning and maintenance.

The solution is recirculated in the REGENERATOR part of the system, where the absorbed water is driven out of the solution by applying heat, and transferred into the secondary airstream which is transporting it to the outside.

Lithium-Chlorid (LiCl) solution used for recirculation is non-toxic and does not vaporize. The solution is stable and acts desinfecting by removing bacteria out of the airstream.

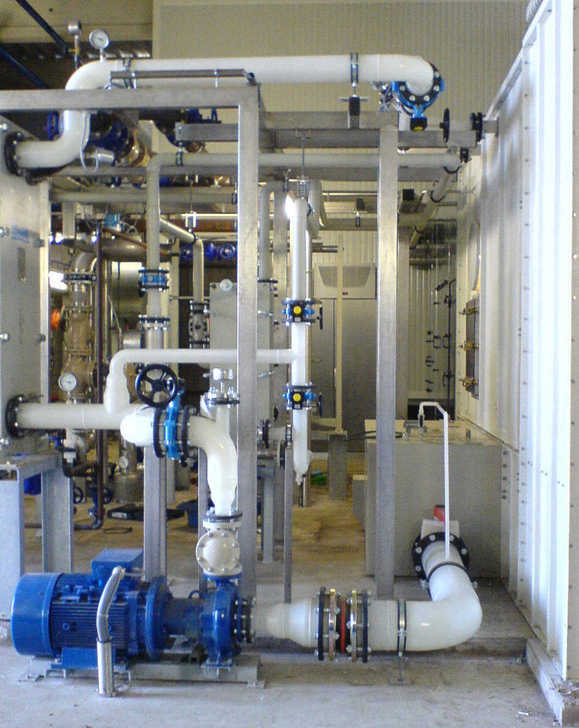

Reference plants up to airflow volumes of
120 000 m3/h in food and pharmaceutical industry.

We offer complete systems with regenerator, energy-recovery and controls. We also exchange parts of existing systems.

UNITECH De-Humidifier/Dryer are individual designed solutions according to your
requirements and field conditions.
